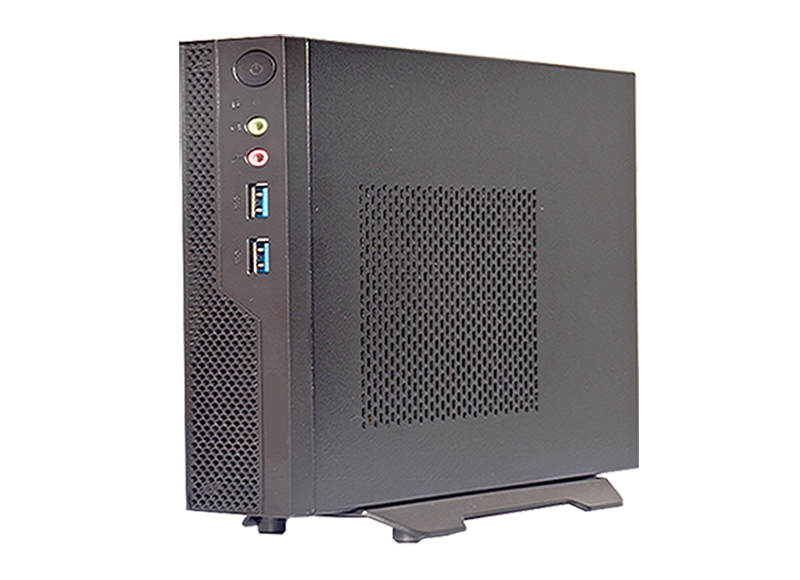

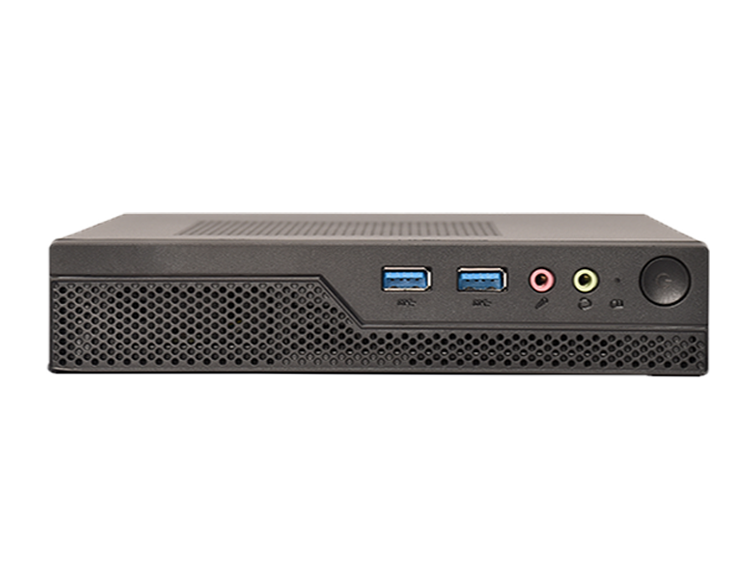

BV10/12/16
1L Cloud Terminal
○Optional Intel® 6th to 14th Gen CPUs;
○Supports up to 2 Gigabit Ethernet ports;
○Supports up to 4× USB 3.0 and 4× USB 2.0 ports;
○Provides 1× M.2 2230 slot for Wi-Fi + Bluetooth expansion;
○Provides 1× M.2 2280 slot for SSD expansion;
○Uses DDR4 memory, supports up to 64 GB;
○Supports dual-display output via DP/HDMI + HDMI/VGA;
Model | BV10 | BV12 | BV16 | |
System | CPU | Intel® 6th/7th/8th/9th CPU | Intel® 10th/11th CPU | Intel® 12th/13th/14th CPU |
Chipset | B250/H310C/Mobile Processor | H510/Mobile Processor | H610/Mobile Processor | |
BIOS | AMI BIOS | AMI BIOS | AMI BIOS | |
Memory | 2xSO DIMM DDR4 supports up to64G | |||
Display Output | HDMI | 1 x HDMI1.4b | ||
VGA | 1 x VGA | |||
WIFI | M.2 | 1 x M.2 2230 for Wi-Fi + Bluetooth expansion | ||
Storage | M.2 | 1 x M.2 2280 for SSD （PCIE ） | ||
SATA | 1 x SATA HDD（2.5寸） | |||
I/O Ports
| Ethernet | 1x 1000 MbpsRJ45 | ||
USB | 2 x USB3.0，2 x USB2.0，rear IO； 2 x USB3.0，2 x USB2.0，frontIO； | |||
Audio | 1× 3.5mm microphone jack, 1× 3.5mm headphone jack | |||
LED | 1× Power LED, 1× HDD Activity LED | |||
Management Features | Wake-on-LAN | |||
Auto Power-On at Power Recovery | ||||
Watchdog Timer | ||||
Power | Type | DC IN | ||
Voltage | 19V | |||
Power Rating | 90W | |||
Environmental | Operating Temperature | 0 ℃ ~ 40 ℃ | ||
Storage Temperature | -20 ℃ ~ 60 ℃ | |||
Storage Humidity | 95%@40 ℃（non-condensing） | |||
Mounting Options | Desktop & Wall-mountable | |||
Mechanical | Dimensions | 183mm x 189mm x 37mm | ||
Color | Black | |||
Certifications | CE/FCC(DoC) Class B，CCC | |||
